Vertical glass door energy-saving fruit and vegetable commercial beverage refrigerator

More than 30 years professionally produce the high quality refrigerated products,export a lots around the world every year.Famous brand compressor,stable excellent quality,working highly efficient in an energy-saving way.We can supply a complete range of refrigeration equipment,including China best home refrigerator, chest

Featured Products

More than 30 years professionally produce the high quality refrigerated products,export a lots around the world every year.Famous brand compressor,stable excellent quality,working highly efficient in an energy-saving way.

We can supply a complete range of refrigeration equipment,including China best home refrigerator, chest freezer,beverage cooler and ice cream showcase, wine cooler, ice maker, cake showcase, kitchen refrigeration equipment, car refrigerator,absorption refrigerator and truck air conditioner etc..

Product Application:

This portable beverage cooler,upright commercial refrigerator,soft drink cooler is mainly used in bar,hotel,restaurant,cateen,grocery,cafes,bakery,grocery,supermarkets etc.And for chiller food,such as vegetable, fruit,drinks,dairy,medicine and so on that's to maintain a fresh state.

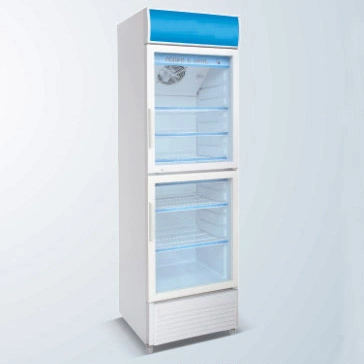

Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

No frost,fan cooling upright single door ABS inner display beverage cooler/display freezer/glass door chiller/beverage showcase

ModelLC-220FLC-300FLC-350FLC-230FLC-310FLC-360F
Net (lt)200270315230310360
Bottom surfaceflatstair
Control/Temperature digital screenDigital
Cooling type/Frost freeFan cooling/yes
Cabinet Tem.ºC0~10
External dimension (mm)530*635*1645620*635*1765620*635*1935530*635*1645620*635*1765620*635*1935
Packing dimension(mm)585*665*1704685*665*1824685*665*2050585*665*1704685*665*1824685*665*2050
Material of inner cabinetABS
Material of outer cabinetPre-painted cold-roll steel sheets
Type of evaporatorcopper fins
Type of condenserbackside mash wire Or the steel one at bottombackside mash wire
Bottom condenserOption
Condenser fan motorOption
With interior fanyes
Insulation thickness(mm)40(average)
Adjust feet and wheel2, 2
Adjustable shelves (pcs)334334
Internal light vert./hor.Hor.*1 &Vertical*1
Door frame,handle materialPVC/with aluminum for option
Glass type of door,(tempered)*normal
Weight net / Weight gross (kg)56/6268/8975/8556/6268/8975/85
40' HQ987371987371
CertificationCB,CE,ROHSCB,CE,ROHSCE,ROHSCB,CE,ROHSCB,CE,ROHSCE,ROHS
Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

Display showcase cooler with fan cooling

Feature:

1. Famous brand thermostat (Carel);

2. Auto defrost system;

3. High efficiency EC Fans;

4. Low noise,Low energy consumption;

5. Double layers normal glass;

6. Self-closing doors and door locks standard;

7. Cabinet material:Powder coated steel;

8. Interior liner:ABS or Pre-painted cold-roll steel sheets;

9. One safety interior light in cabinet;

10. Illuminated top sign panel, lights up for right and attractive display;

11. Digital Thermostatic control, holds 32 to 45°F;

12. Forced-air system, most efficient cooling with no need for defrost;

13. CFC-free and polyurethane insulation,environmental friendly;

14. Copper fins or Bundy tube;

15. Sturdy PVC-coated wire shelves designed to hold any container upright;

16. Heavy duty castor with brake;

17. Adjustable feet;

18. Removable door gasket for trouble-free cleaning.Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

Direct cooling single door ABS inner vertical beverage showcase

ModelLC-220LC-300LC-350LC-230LC-310LC-360
Net (lt)200270315230310360
Bottom surfaceflatstair
Control/Temperature digital screenManual/not
Cooling type/Frost freeDirect cooling/not
Cabinet Tem.ºC0~10
External dimension (mm)530*635*1645620*635*1765620*635*1935530*635*1645620*635*1765620*635*1935
Packing dimension(mm)585*665*1704685*665*1824685*665*2050585*665*1704685*665*1824685*665*2050
Material of inner cabinetABS
Material of outer cabinetPre-painted cold-roll steel sheets
Type of evaporatorBundy tubing
Type of condenserbackside mash wire Or the steel one at bottombackside mash wire
Bottom condenserOption
Condenser fan motorOption
With interior fanyes
Insulation thickness(mm)40(average)
Adjust feet and wheel2, 2
Adjustable shelves (pcs)334334
Internal light vert./hor.Hor.*1 &Vertical*1
Door frame,handle materialPVC/with aluminum for option
Glass type of door,(tempered)*normal
Weight net / Weight gross (kg)56/6268/8975/8556/6268/8975/85
40' HQ987371987371
CertificationCB,CE,ROHSCB,CE,ROHSCE,ROHSCB,CE,ROHSCB,CE,ROHSCE,ROHS
Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable
Aluminium inner singel door upright display beverage cooler:

ModelGross volume(l)Cabinet Tem.ºCAdjustable shelves (pcs)External Dimension (mm)Packing dimensions (mm)N.W./G.W. (kg)40' HQ (pcs)
LC-2282280~103530*590*1645585*625*170456/62102
LC-2682680~103530*590*1845585*625*190462/7296
LC-3083080~104620x590x1845685x625x190468/8975
LC-3583580~104620x630x1935685x665x199475/8571or54
LC-4384380~104620x690x2073685x725x213285/9551

Upright double-door double-temperature beverage cooler,display chiller:

ModelN.Freezer/ N.fridge (L)Cabinet Tem.ºCAdjustable shelves (pcs)External dimensions(mm)Packing dimensions(mm)N.W./G.W. (kg)40' HQ (pcs)
LT-22855/150≤-18/0~103530*603*1565580*655*161562/7296
LT-29865/205≤-18/0~103620*603*1645685*665*169568/7875
LT-35885/220≤-18/0~104620*603*1815685*665*186575/8573

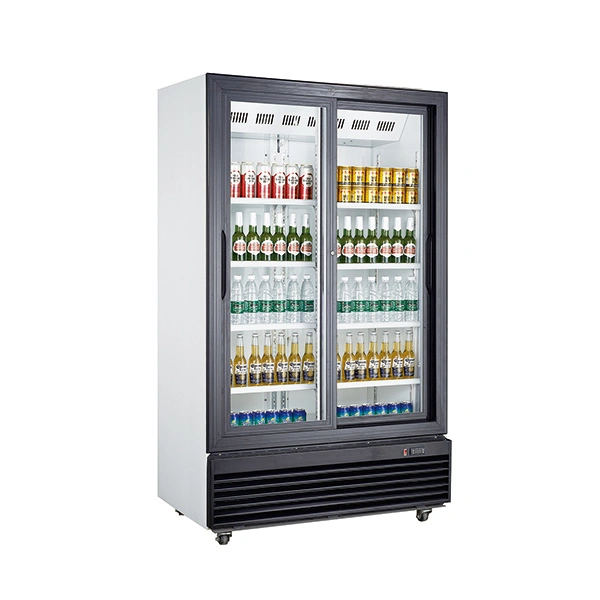

Big no frost beverage cooler

ModelGross volume(l)Cabinet Tem.ºCAdjustable shelves (pcs)Qty of door (pcs)External Dimension (mm)Packing dimensions (mm)N.W./G.W. (kg)20·/40·/40' HC (pcs)
LC-410F4100~1082900x630x1856955x675x1956129/14520/41/41
LC-610F6100~1082900x725x2036955x770x2136140/15418/36/36
LC-810F8100~10821000x730x20361060x770x2136146/16415/33/33
LC-810FS8100~10821000x645x20361060x785x2136146/16415/33/33
LC-1010F10100~10821200x730x20361260x770x2136177/19913/27/27
LC-1010FS10100~10821200x645x19481255x770x2136177/19913/27/27
LC-1310F13100~101231615x770x20361615x770x2136187/20921
LC-2010F20100~101642080x800x20362130x860x2136204/21413
Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable
Upright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit VegetableUpright Glass Door Saving-Energy Commercial Beverage Refrigerator for Fruit Vegetable

Showcase FAQ

What if the freezer is making abnormal noises?

Check following :

1.The freezer unleveled

2.Parts loose

3.Condenser blade touching loose wiring.

4.Refrigerant leaked out

5.Motor bearings worn out.

What if there is water on the floor under and /or around freezer?

Check following:

1.The drain hose outside of the drain pan

2.Leak in the drain pan

3.Excessive ambient humidity and door openings.

FAQ
1. Q: How about the quality?
A: We use all the best high quality raw material and professional produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
