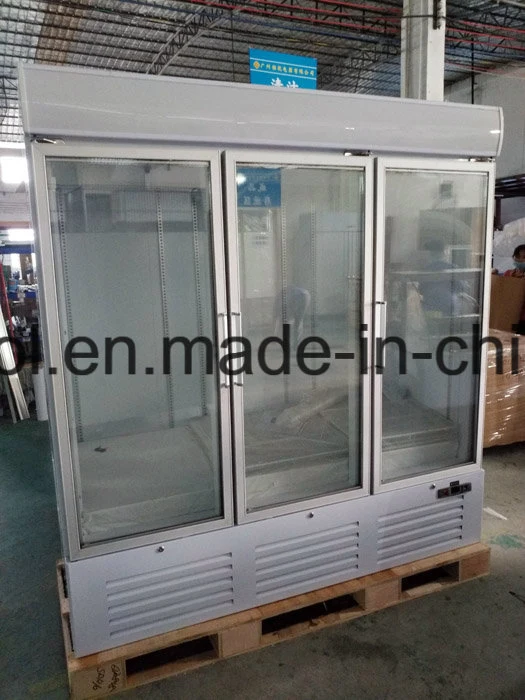

Glass Door Upright Freezer Display Showcase for Commercial Supermarket

Key Features:

⇒ Digital temperature control system provides precise and constant temperature.
This level of precision allows food products to remain fresh over an extended period of time. The monitor digitally displays the present temperature and current status of the freezer. You can easily change the temperature by adjusting the thermostat.

⇒ LED lighting interior display system
Brighter and longer lasting LED lights provide attractive, enhanced illumination compared to fluorescents. It saves energy by producing less heat, while maximizing the visibility in the display area.

⇒ LED advertising panel
LED lighting offers 10 times longer lasting life than fluorescents and conserves energy as well.

⇒  Efficient refrigeration system
SD1210 glass door freezer is designed with oversized and balanced (CFC Free R-404A) refrigeration systems. These include efficient evaporators and condensers for faster freezing and greater efficiency.

⇒ Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear, and facilitates smooth door opening.

⇒ Automatic evaporator fan motor delays
When the door is opened the evaporator fan will stop, preventing the circulation of hot and moist air from escaping into the refrigerator. This increases energy efficiency and lengthens the life of the compressor.


How can we make the high-quality glass door freezers?

We have been making the upright glass door freezers since year 2013. We are well aware of that most of the problems on the glass door freezers are caused by the defrosting issue. We have well solved the defrosting issues from following aspects:
1. Ensure the freezer body is flat & smooth and glass door gasket is strong, so no leakage on the glass door. And all the holes on the freezer body are completely sealed.
2. Use the right power defrosting heater.
3. Install the defrosting water collection tray & water draining pipe with heating wires.
4. Evaporator fan motors are delayed to work after the defrosting ends.


Specifications:

MODELSD1210
CONDENSING UNIT TYPEPlug-in Embraco
TEMPERATURE RANGE-18°C ~ -23°C
AMBIENT TEMPERATURE25°C
VOLTAGE220V - 240V
FREQUENCY50Hz, 60Hz
REFRIGERANTR404a
PRODUCT DIMENSION (MM)1830(w) x 730(d) x 2000(h)
PACKING SIZE(MM)1890(W) X 790(d) x 2100(h)
LOADING QTY / 40HQ15PCS


SD Plug-in Glass Door Freezer Series:

ModelDimensions (MM)Temerature Range VolumeCompressorRefrigeration TypeLoading Qty/40HQ
SD468686*730*2000-18~-23ºC / -10°F ~ 0°F468LEmbracoFan Cooling, Plug-in45PCS
SD9581370*730*2000-18~-23ºC / -10°F ~ 0°F958LEmbracoFan Cooling, Plug-in23PCS
SD12101830*730*2000-18~-23ºC / -10°F ~ 0°F1210LEmbracoFan Cooling, Plug-in15PCS
SD13802025*730*2000-18~-23ºC / -10°F ~ 0°F1380LEmbracoFan Cooling, Plug-in15PCS

Glass Door Upright Freezer Display Showcase for Commercial Supermarket
Glass Door Upright Freezer Display Showcase for Commercial Supermarket
Glass Door Upright Freezer Display Showcase for Commercial Supermarket



Glass Door Upright Freezer Display Showcase for Commercial Supermarket
