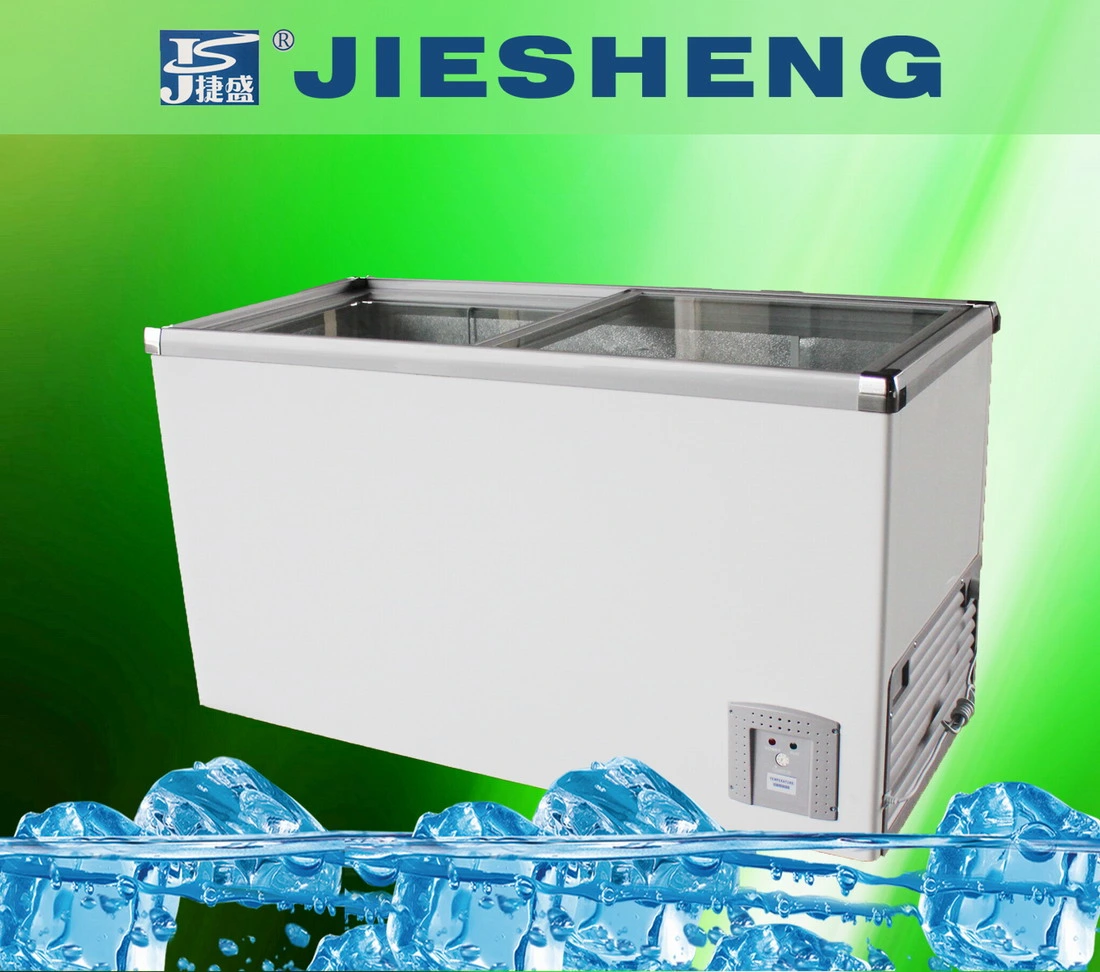

SD/SC-230, SD/SC-300, SD/SC-418
1.Embossed aluminium sheet liner or white powder coated;
2.Tempered and heat-reflecting glass doors;
3.One food basket is provided together with the freezer;
4. Aluminium frame or plastic frame ;
5. The powerful wheels with brake;
Specification
1.Embossed aluminium sheet liner or white powder coated;
2.Tempered and heat-reflecting glass doors;
3.One food basket is provided together with the freezer;
4. Aluminium frame or plastic frame ;
5. The powerful wheels with brake;
Specification
| Model | SD-230 | SD-300 | SD-358 | SD-418 | SD-488 | ||||||
| Capacity | 230L | 300 L | 358L | 418L | 488 L | ||||||
| Climate class | ST | ST | ST | ST | ST | ||||||
| Temperature | -18oC to 0oC | -18oC to 0oC | -18oC to 0oC | -18oC to 0oC | -18oC to 0oC | ||||||
| Frame type(Optional) | Aluminum/Plastic | Aluminum/Plastic | Aluminum/Plastic | Aluminum/Plastic | Aluminum/Plastic | ||||||
| Inside bottom type | Step bottom | Step bottom | Step bottom | Step bottom | Step bottom | ||||||
| Power supply | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | ||||||
| Rated input power | 190W | 230W | 270W | 280W | 320W | ||||||
| Power consumption | 1.80 kwh/24h | 2.30 kwh/24h | 2.80 kwh/24h | 3.20 kwh8/24h | 4.20 kwh8/24h | ||||||
| Refrigerant | R134a | R134a | R134a | R134a | R134a | ||||||
| Basket | 1 | 1 | 1 | 1 | 1 | ||||||
| Condenser | Bread type with fan | Bread type with fan | Bread type with fan | Fin type | Fin type | ||||||
| Net/Gross weight | 60/70 kg | 65/75 Kg | 70/80 Kg | 75/87 Kg | 87/100 Kg | ||||||
| Interior dimension(mm) | 779x529x681 | 949x529x681 | 1119x529x681 | 1279x529x681 | 1479x529x681 | ||||||
| External dimension (mm) | 900x663x770 | 1083x663x770 | 1253x663x770 | 1413x663x770 | 1613x663x770 | ||||||
| Packing dimension(mm) | 980x730x880 | 1150x730x880 | 1320x730x880 | 1480x730x880 | 1680x730x880 | ||||||
| Loading quantity | 108 pcs/40'HC | 95 pcs/40'HC | 80 pcs/40'HC | 71 pcs/40'HC | 62 pcs/40'HQ |
